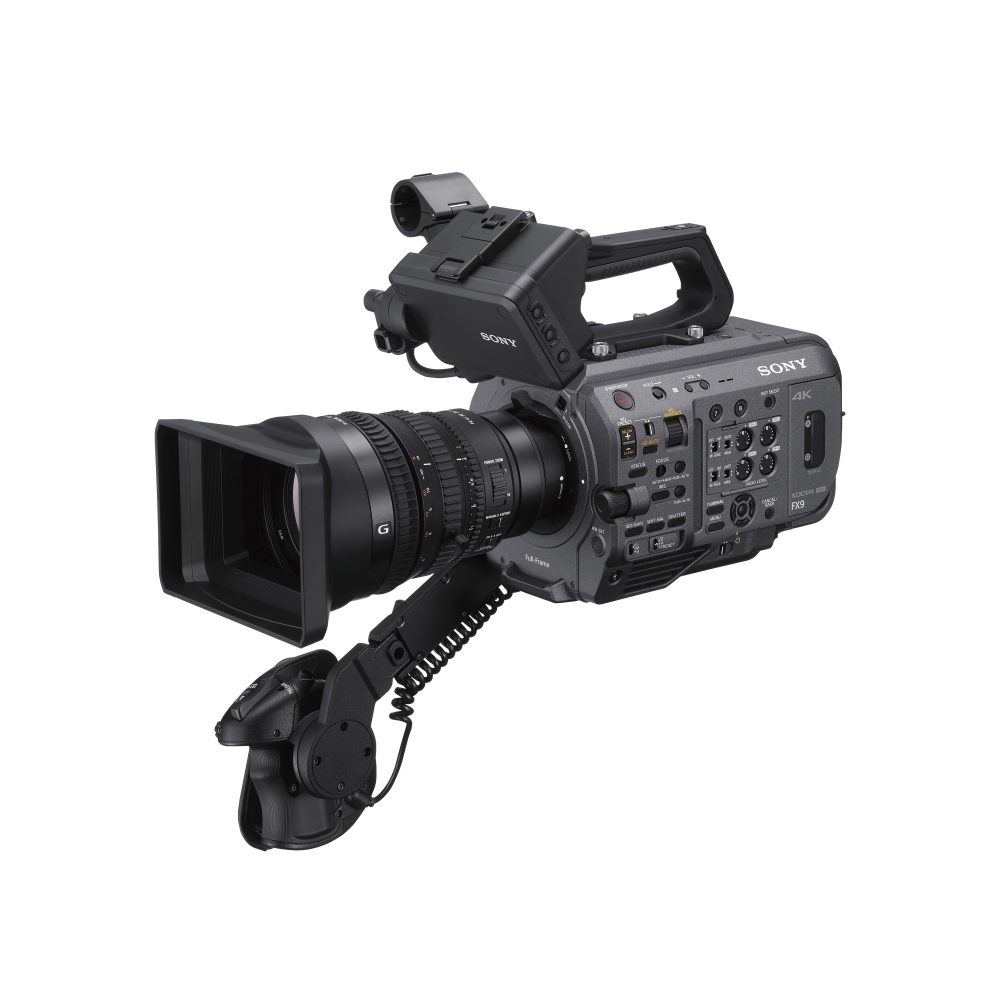

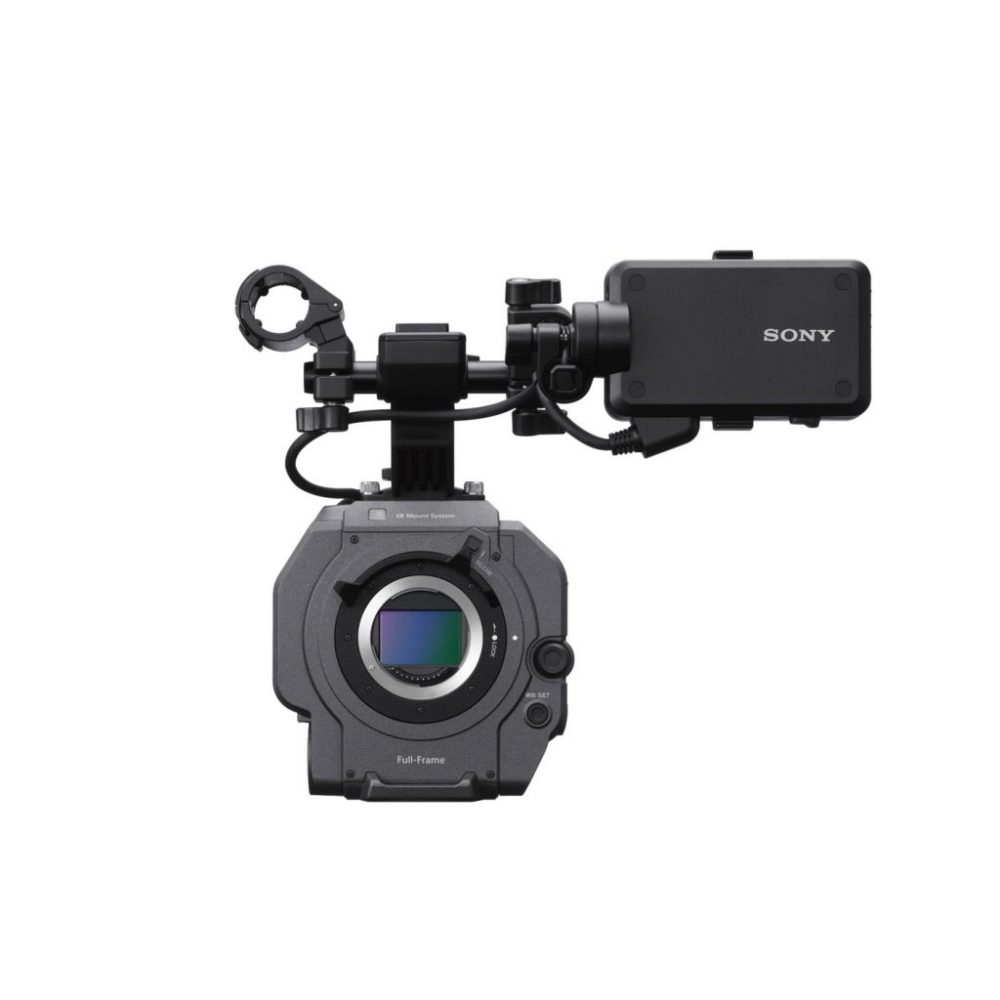

Sony FX9

Compact, Full-Frame cinematography camera with 15+ stops of dynamic range and dual base ISO recording.

  • £285.00
  • £342.00
  • Contact us for long term or weekly hire rates.

Available to hire

The Sony PXW-FX9 builds on the success of the popular Sony FS7/FS7II range of E-mount camcorders by introducing a larger Full-Frame 35mm Exmor R sensor.

Whilst retaining the compact form-factor and familiarity of the FS7, the Sony FX9 features a sensor over twice the surface area of a Super 35 sensor, providing a shallower depth of field and a wider angle of view.

Other key features of the FX9 include dual base ISO of 800/4000, over 15 stops of dynamic range and a 6K oversampled sensor for recording in DCI 4K, UHD, and HD resolutions. And for when a Super 35 format is required, the sensor crops to achieve a S35mm 4K recording mode.

The FX9 Features an Electronic Variable ND, allowing for the user to have step-less control of their exposure without compromising on their chosen aperture.

Our Sony FX9 camera kits are configured to a very high standard with a ARRI 15mm support package, media, and accessories to enable the camera to be used to it’s full potential. For power options, our rental kit includes both the regular ‘BP’ type batteries as well as a 4-way set of V-lock batteries and a V-lock power adapter. We also stock a range of Sony E mount lenses, E-EF and E-PL lens mount adapters for use with the FX9 – please speak to a member of our rental team for further details.

  • 1x Sony FX9 Camera Body
  • 1x Sony FX9 Hand Grip Remote
  • 1x Sony FX9 LCD Viewfinder 3.5″
  • 1x Sony PXW-FX Series Loupe
  • 1x ARRI Top Plate for Sony FX9
  • 1x ARRI CCH-4 Camera Center Handle
  • 1x ARRI PXW-FX9 Left Side Bracket
  • 1x ARRI PXW-FX9 Right Side Bracket
  • 1x ARRI Wedge Plate for Sony FX9
  • 1x ARRI Quick Release Plate QRP-1
  • 1xARRI E-PL Mount Support for Vocas
  • 1x Sony ECM-VG1 Shotgun Microphone
  • 1x Sennheiser HD-25 Headphones
  • 2x 15mm Steel Rod 9″ | 240mm
  • 2x 15mm Steel Rod 12″ | 300mm
  • 1x Bebob CoCo FX9 V-Lock Plate
  • 1x Hawk-Woods VL-ATM4 4-Channel V-Lock Charger
  • 4x Hawk-Woods VL-150HP V-Lock Battery
  • 1x Hawk-Woods BP-MX2 Battery Charger
  • 4x Hawk-Woods BP-98UX Battery
  • 1x Sony ACDP- 06D01 FX Series Power Supply
  • 4x Sony XQD G-Series Card 240GB
  • 1x Sony MRW-G1 XQD Card Reader
Lens mount

E-Mount

Sensor Type

Large Format Sony Exmor R CMOS

Sensor Latitude

15+ Stops

Sensor Resolution

6008×3168

Sensor Size

35.7×18.8
Ø40.34

Recording Codecs Internal

XAVC-I DCI4K
XAVC-I QFHD
XAVC-I HD
XAVC-L QFHD
XAVC-L HD
MPEG HD422 HD

Frame Rates

6K FF 4KDCI/UHD 1 – 30 fps
5K FF cropped 4KDCI/UHD 1 – 60 fps
4K S35 4KDCI/UHD 1 – 60 fps
2K FF XAVC-I HD 1 – 60, 100, 120, 150 fps
2K FF XAVC-L HD 1 – 60, 100, 120 fps
2K S16 XAVC-I HD 1 – 60, 100, 120, 150 fps
2K S16 XAVC-L HD 1 – 60, 100, 120 fps

Internal Filtration (ND)

Variable Electronic ND 2 – 7 Stops

Exposure Index

EI 800 | 4000 Dual Base

EI 800 Base: EI 320 – 2500
EI 4000 Base: EI 2500 – 12800

Lens Squeeze Factors

1.33, 2.00 (internal monitoring only)

Gamma Curve

S-Cinetone

Media Type

XQD

Video I/O

1x SDI 12G
1x SDI 3G
1x HDMI Type A

Audio I/O

2x XLR 3pin Line/Mic +48V
1x 3.5mm Stereo output

TC & Genlock

1x BNC LTC Timecode In/Out
1x BNC Genlock In

Power Consumption

35.2W

Power Input

19.5V Barrel Connector

via Bebob FX9 CoCo V-Lock Battery Pate
1x XLR 4pin 12V

Power Output

via HawkWoods BP-98UX Battery
2x D-Tap

via Bebob FX9 CoCo V-Lock Battery Pate
2x D-Tap
1x LEMO 2pin 12V
1x USB-A

Other I/O

Built-in WiFi module (IEEE 802.11b/g/n/ac)
NFC

Dimensions

146 x 142.5 x 229 mm

Weight Body Only

2.00 kg
