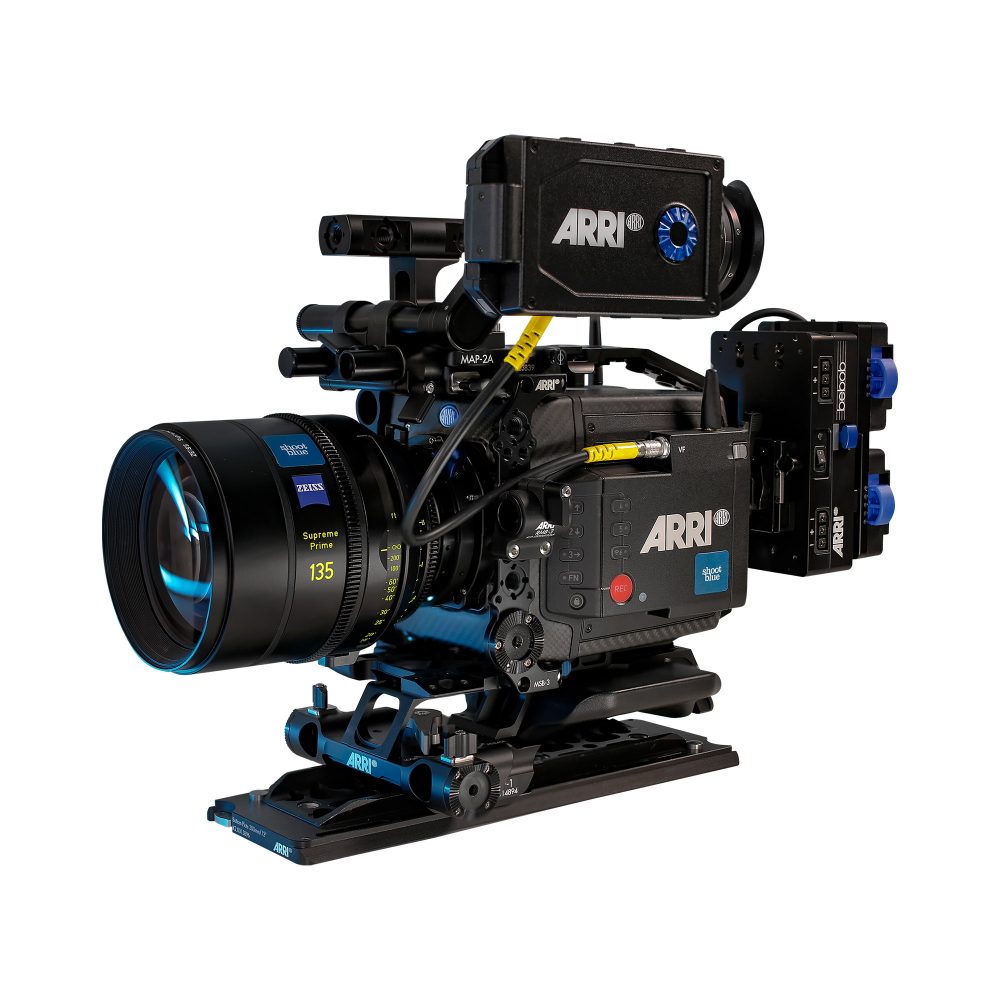

Name: ARRI ALEXA Mini LF Camera Kit
Brand: ARRI
SKU: 238
Availability: InStock

Kit Includes
Technical
Resources

1x ARRI ALEXA Mini LF Body
1x ARRI LPL Mount (LBUS)
1x ARRI PL-to-LPL Adapter
1x ARRI Viewfinder MVF-2
1x ARRI MVF-2 to EVF 35cm Cable
1x ARRI MVF-2 EVF Cable 50cm
1x ARRI Viewfinder Extension Bracket VEB-3
4x Codex Compact Drive 960GB
2x Codex Compact Drive Reader
1x ARRI Transvideo StarliteHD 5″ OLED
1x Transvideo Mini 3D Swing Arm
1x SDHC Card 16GB
1x ARRI Top Handle CCH-2
2x ARRI Mini Adapter Plate MAP-2A
1x ARRI Mini Side Bracket MSB-3
1x ARRI Mini Side Bracket MSB-2
1x ARRI Bridge Plate Adapter BPA-4
1x ARRI 19mm Compact Bridge Plate CBP-1
1x ARRI 15mm LWS Adapter for CBP
1x ARRI Sliding Dovetail Plate 12″ | 300mm
1x ARRI Rear Accessory Bracket RAB-1
1x ARRI RAB-1 Sliding Plate
1x ARRI Shoulder Pad CSP-1
2x ARRI Mini Adapter Plate MAP-1
2x ARRI Rod Mounting Bracket RMB-3
1x ARRI Lightweight Bridge Support LBS-2
1x ARRI Rosette Hand Grip
1x ARRI Rosette Hand Grip with Run|Stop Slot
2x ARRI Hand Grip Long Extension 195mm
1x Wooden Camera A-Box [ALEXA Mini LF]
2x 15mm Carbon Fibre Rod 9″ | 240mm
2x 15mm Carbon Fibre Rod 12″ | 300mm
2x 15mm Carbon Fibre Rod 18″ | 440mm
2x 19mm Steel Rod 9″ | 240mm
2x 19mm Steel Rod 18″ | 440mm
1x ARRI | Bebob V-Lock Power Splitting Box MkII
1x Bebob VMicro Dual Battery Plate
1x Hawk-Woods Side Battery Plate VL-CFM2
1x ARRI EXT-RS Adapter
1x ARRI RS-3Pin Run/Stop Trigger Cable
1x D-Tap to Right Angle 8 Pin LEMO Cable 30cm | 1ft
1x ARRI KC-50 3-Pin XLR Power Cable
1x ARRI ALEXA Mini Wetsuit
1x Sennheiser HD-25 Headphones
1x Bebob S8Micro 8-Channel V-Lock Charger
8x Bebob V150 Micro V-Lock Battery

Lens mount	LPL \| PL \| EF
Sensor Type	Large Format ARRI ALEV III (A2X) CMOS
Sensor Latitude	14+ Stops
Sensor Resolution	4448 x 3096
Sensor Size	36.70 x 25.54 mm Ø44.71 mm
Recording Codecs Internal	MXF/ARRIRAW MXF/Apple ProRes 4444 XQ MXF/Apple ProRes 4444 MXF/Apple ProRes 422 HQ
Frame Rates	ARRIRAW 4.5K LF 3:2 Open Gate – 4.5K: 0.75 – 40 fps ARRIRAW 4.5K LF 2.39:1 – 4.5K: 0.75 – 60 fps ARRIRAW 3.8K LF 16:9 – UHD: 0.75 – 60 fps ARRIRAW 2.8K LF 1:1 – 2.8K: 0.75 – 60 fps ARRIRAW 3.4K S35 3:2 – 3.4K: 0.75 – 60 fps Apple ProRes 4.5K LF 3:2 Open Gate – 4.5K: 0.75 – 40 fps Apple ProRes 4.5K LF 2.39:1 – 4.5K: 0.75 – 60 fps Apple ProRes 4.3K LF 16:9 – UHD: 0.75 – 48 fps Apple ProRes 4.3K LF 16:9 – HD: 0.75 – 75 fps Apple ProRes 3.8K LF 16:9 – UHD: 0.75 – 60 fps Apple ProRes 3.8K LF 16:9 – 2K: 0.75 – 90 fps Apple ProRes 3.8K LF 16:9 – HD: 0.75 – 90 fps Apple ProRes 2.8K LF 1:1 – 2.8K: 0.75 – 60 fps Apple ProRes 3.2K S35 16:9 – 3.2K: 0.75 – 75 fps Apple ProRes 2.8K S35 4:3 – 2.8K: 0.75 – 75 fps Apple ProRes 2.8K S35 16:9 – HD: 0.75 – 100 fps
Internal Filtration (ND)	0.6, 1.2, 1.8
Exposure Index	EI 800 base sensitivity EI 160-3200
Lens Squeeze Factors	1.00, 1.25, 1.30, 1.50, 1.65, 1.80, 2.00
Gamma Curve	LogC
Media Type	Codex Compact Drive
Video I/O	1x SDI 6G 1x SDI 3G
Audio I/O	1x LEMO 6pin Balanced Stereo Line +12V 1x 3.5mm Stereo Output (via EVF)
TC & Genlock	1x LEMO 5pin LTC Timecode In/Out 1x BNC SDI Sync in/Genlock
Data I/O	1x LEMO 10pin Ethernet 1x LEMO 7pin EXT 1x LEMO 4pin LBUS (on lens mount) 1x USB 2.0
Power Consumption	65W
Power Input	1x LEMO 8pin 11-34V
Power Output	1x Fischer 3pin 24V RS 1x LEMO 2pin 12V 1x LEMO 7pin EXT 24V power output via V-mount Power Splitting Box MkII 2x D-Tap 2x Fischer 3pin 24V 3x LEMO 2pin 12V 1x Hirose 4pin 12V 2x USB-A
Other I/O	Built-in WiFi module (IEEE 802.11b/g) Built-in White Radio for ARRI lens and camera remote control
Dimensions	140 x 143 x 188 mm
Weight Body Only	2.6kg

Manufacturers Product Page	ARRI.com
Technical Specification	ARRI.com
ARRI ALEXA Mini LF Simulator	ARRI ALEXA Mini LF Simulator
