Sony

Sony FX9

Compact, Full-Frame cinematography camera with 15+ stops of dynamic range and dual base ISO recording.

  • Daily Hire Rate £165.00
  • £198.00
  • Contact us for long term or weekly hire rates.

Available to hire

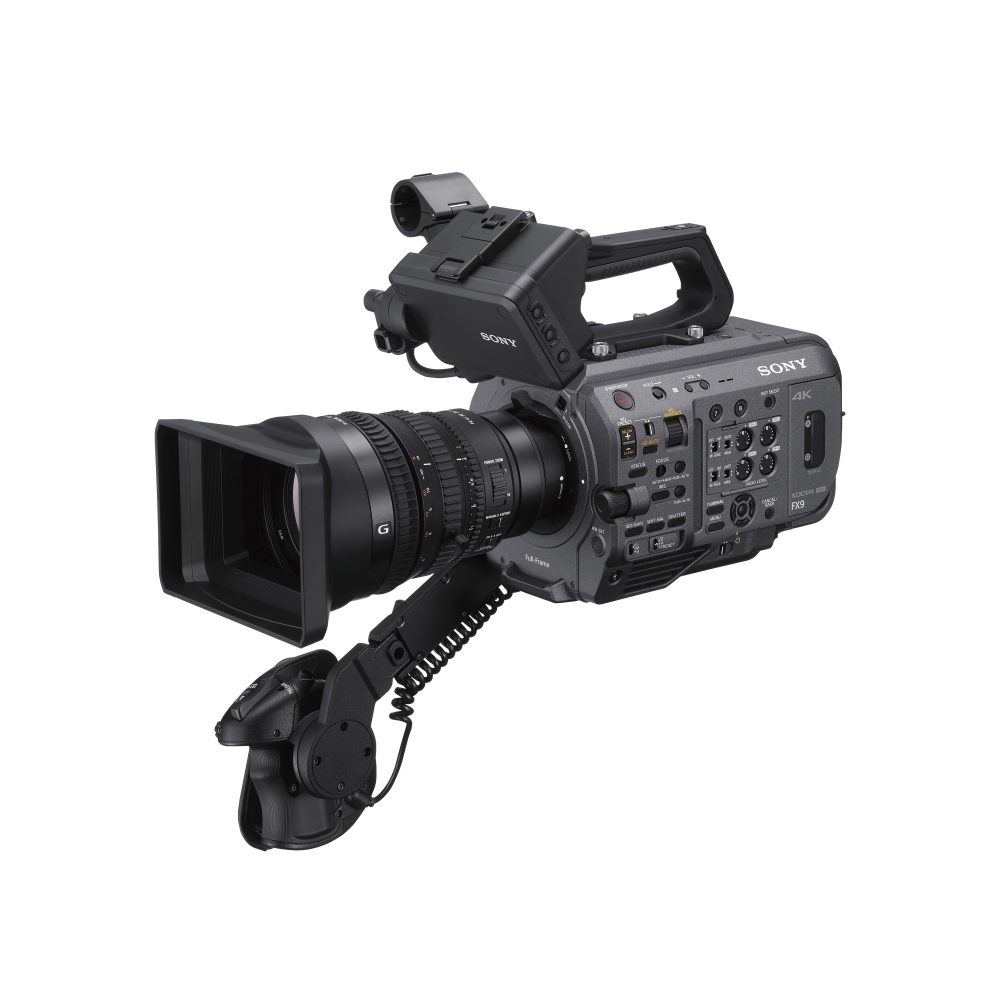

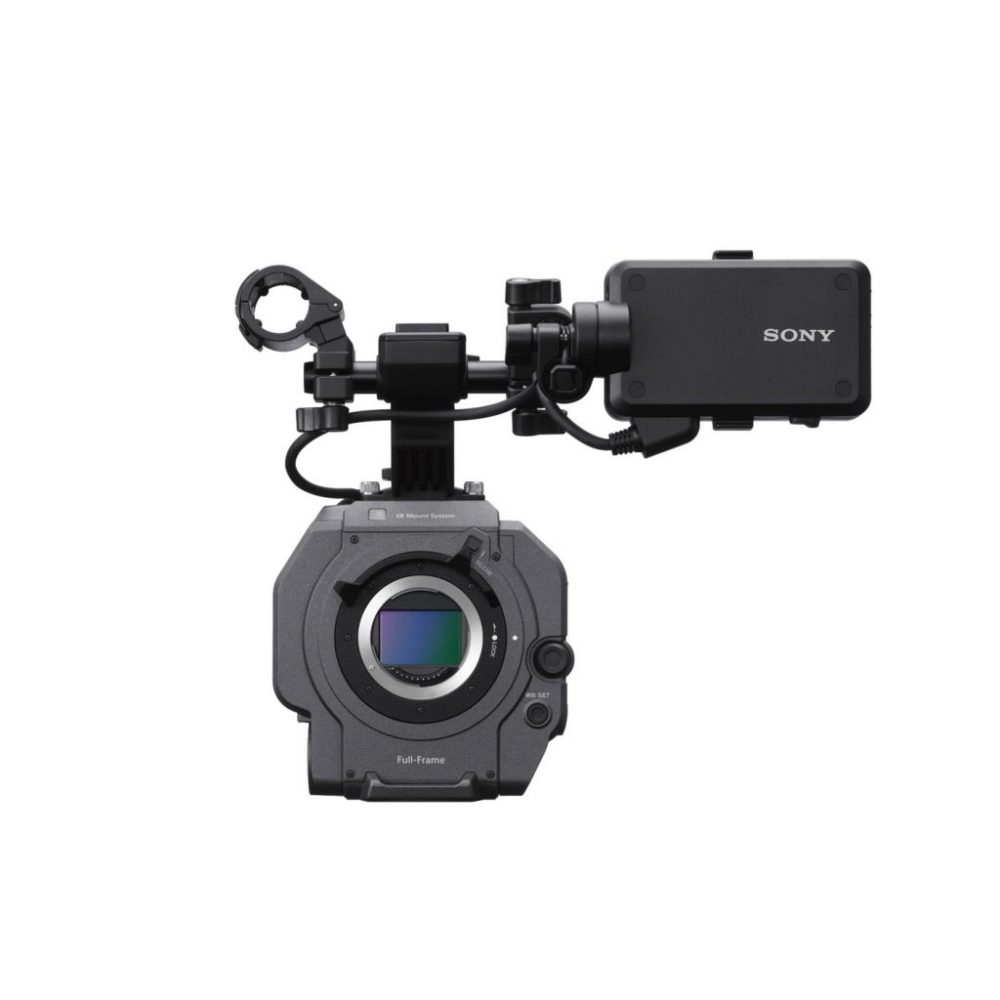

The Sony PXW-FX9 is a full-frame E-mount camcorder designed for professional filmmakers, building on the strengths of Sony’s latest cinema line, including the FX3 and FX6. With its advanced imaging capabilities, the FX9 complements the Sony FX series by offering enhanced versatility, robust build quality, and superior image performance.

At the heart of the FX9 is a 6K Full-Frame Exmor R sensor, delivering exceptional image quality, shallow depth of field, and a cinematic wide-angle field of view. The sensor offers over 15 stops of dynamic range and features dual base ISO (800/4000), making it well-suited to both controlled lighting environments and low-light conditions.

The FX9 supports 6K oversampling for recording in DCI 4K, UHD, and HD, with a Super 35 crop mode available for compatibility with S35mm lenses and workflows. It also includes Sony’s Electronic Variable ND filter for seamless, step-less exposure control without affecting your aperture or depth of field.

Our Sony FX9 rental kits are fully configured for professional production, featuring an ARRI 15mm support package, recording media, and a comprehensive accessory set. Power options include both standard BP-U batteries and a 4-way V-lock battery kit with a V-lock adapter for extended shooting times. We also stock a range of Sony E-mount lenses, as well as E-EF and E-PL mount adapters—please contact our rental team to discuss your lens and accessory requirements.

  • 1x Sony FX9 Camera Body
  • 1x Sony FX9 Hand Grip Remote
  • 1x Sony FX9 LCD Viewfinder 3.5″
  • 1x Sony PXW-FX Series Loupe
  • 1x ARRI Top Plate for Sony FX9
  • 1x ARRI CCH-4 Camera Center Handle
  • 1x ARRI PXW-FX9 Left Side Bracket
  • 1x ARRI PXW-FX9 Right Side Bracket
  • 1x ARRI Wedge Plate for Sony FX9
  • 1x ARRI Quick Release Plate QRP-1
  • 1xARRI E-PL Mount Support for Vocas
  • 1x Sony ECM-VG1 Shotgun Microphone
  • 1x Sennheiser HD-25 Headphones
  • 2x 15mm Steel Rod 9″ | 240mm
  • 2x 15mm Steel Rod 12″ | 300mm
  • 1x Bebob CoCo FX9 V-Lock Plate
  • 1x Hawk-Woods VL-ATM4 4-Channel V-Lock Charger
  • 4x Hawk-Woods VL-150HP V-Lock Battery
  • 1x Hawk-Woods BP-MX2 Battery Charger
  • 4x Hawk-Woods BP-98UX Battery
  • 1x Sony ACDP- 06D01 FX Series Power Supply
  • 4x Sony XQD G-Series Card 240GB
  • 1x Sony MRW-G1 XQD Card Reader
Lens mount

E-Mount

Sensor Type

Large Format Sony Exmor R CMOS

Sensor Latitude

15+ Stops

Sensor Resolution

6008×3168

Sensor Size

35.7×18.8
Ø40.34

Recording Codecs Internal

XAVC-I DCI4K
XAVC-I QFHD
XAVC-I HD
XAVC-L QFHD
XAVC-L HD
MPEG HD422 HD

Frame Rates

6K FF 4KDCI/UHD 1 – 30 fps
5K FF cropped 4KDCI/UHD 1 – 60 fps
4K S35 4KDCI/UHD 1 – 60 fps
2K FF XAVC-I HD 1 – 60, 100, 120, 150 fps
2K FF XAVC-L HD 1 – 60, 100, 120 fps
2K S16 XAVC-I HD 1 – 60, 100, 120, 150 fps
2K S16 XAVC-L HD 1 – 60, 100, 120 fps

Internal Filtration (ND)

Variable Electronic ND 2 – 7 Stops

Exposure Index

EI 800 | 4000 Dual Base

EI 800 Base: EI 320 – 2500
EI 4000 Base: EI 2500 – 12800

Lens Squeeze Factors

1.3, 2.00 (internal monitoring only)

Gamma Curve

S-Cinetone

Media Type

XQD

Video I/O

1x SDI 12G
1x SDI 3G
1x HDMI Type A

Audio I/O

2x XLR 3pin Line/Mic +48V
1x 3.5mm Stereo output

TC & Genlock

1x BNC LTC Timecode In/Out
1x BNC Genlock In

Power Consumption

35.2W

Power Input

19.5V Barrel Connector

via Bebob FX9 CoCo V-Lock Battery Pate
1x XLR 4pin 12V

Power Output

via HawkWoods BP-98UX Battery
2x D-Tap

via Bebob FX9 CoCo V-Lock Battery Pate
2x D-Tap
1x LEMO 2pin 12V
1x USB-A

Other I/O

1x 2.5mm LANC
Built-in WiFi module (IEEE 802.11b/g/n/ac)
NFC

Dimensions

146 x 142.5 x 229 mm

Weight Body Only

2.00 kg
